HARPAGON SYSTEM

Real time flow monitoring system

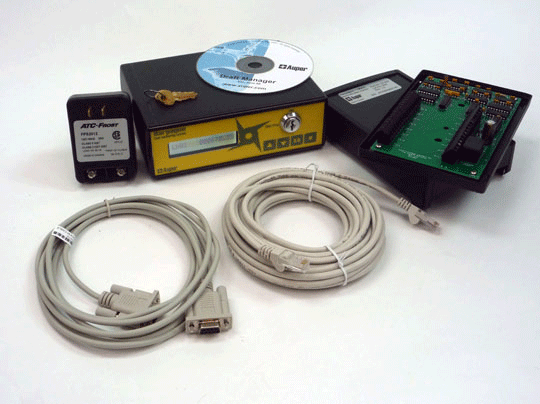

• Up to 16 flow meters per system

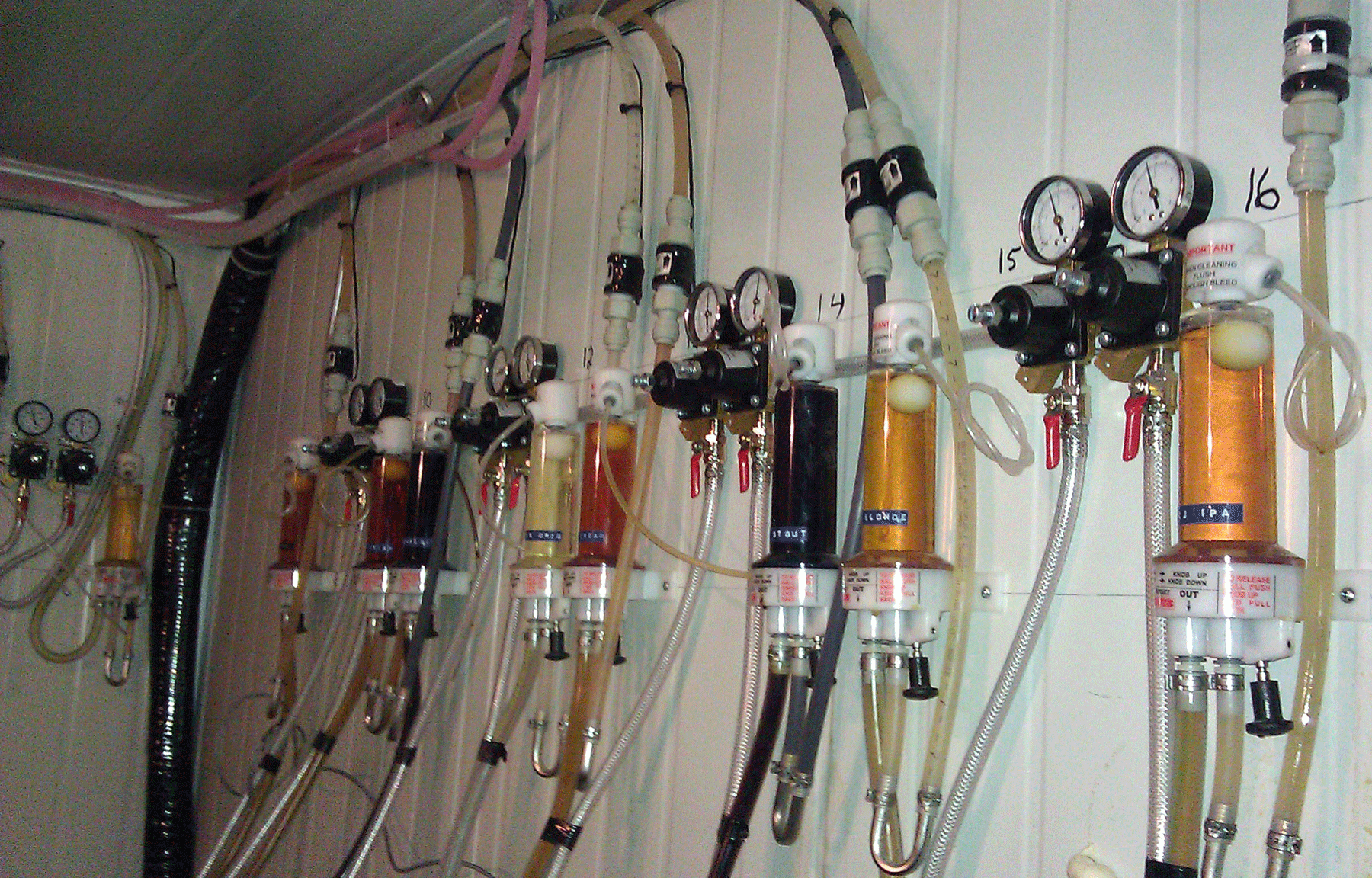

• Flow meter collector box can be mounted inside a cooler

• Easy and clean flow meter connections (no colored pair cables)

• One Cat 5 network cable per system coming out of the cooler

• Can measure ounces, litres or any other measuring unit

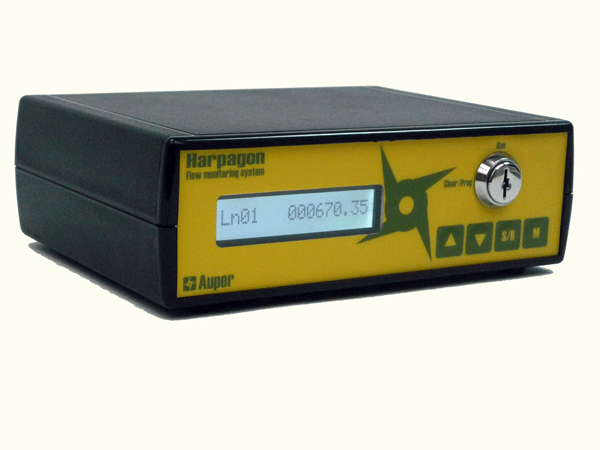

• Display shows the amount served to date

• Counters can be cleared using the Manager key

• Real-time interface to use with the Draft Manager Live software
•

• Up to 100 systems can be connected to the software using

      AP821 hubs

• Wifi and wireless available

SPECIFICATIONS

Dimensions   7" W X 5.375" L X 2.25" H (177.8mm X 136.5mm X 57.1 mm)

Shipping Weight    6.8 lbs / 3.08 Kg

Communication  RS-232 null modem/RS-422

Connectors  RS-232  dbsub 9 male - RS-422  RJ11

                      Flow meters  RJ45 - Power  2.1 X 5.5mm barrel

Flow meter collector cable  UTP Cat 5 four pairs cable

Maximum cable length   1000 ft / 300M

Power supply   12 Volts AC/DC@ 0.65 Amp
